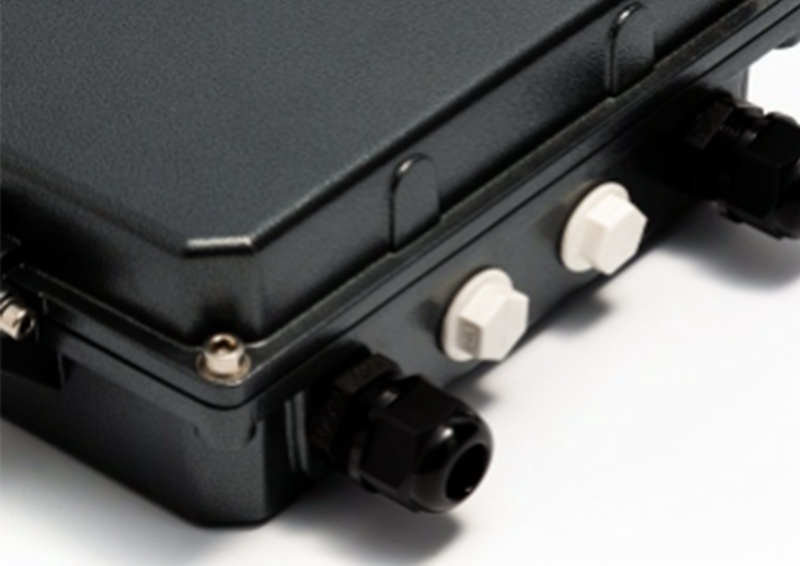

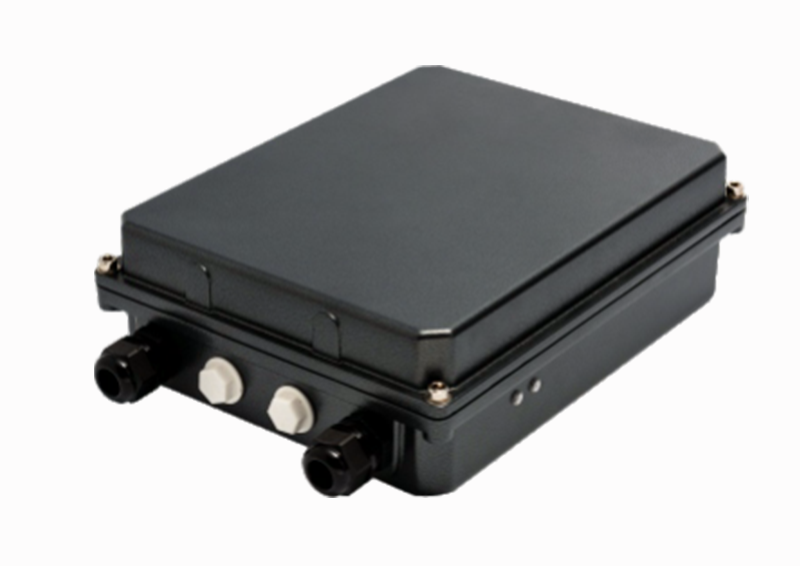

CM-DKW Obstruction Light Outdoor Controller

Model: CM-DKW

Product Description

For the CM-DKM aviation obstruction outdoor controller is fit for our company's all series aviation obstruction's synchronization

flashing work and monitor the light's working status. This product is an indoor's type, the  waterproof grade is IP65,could use

for the outdoor environment directly.

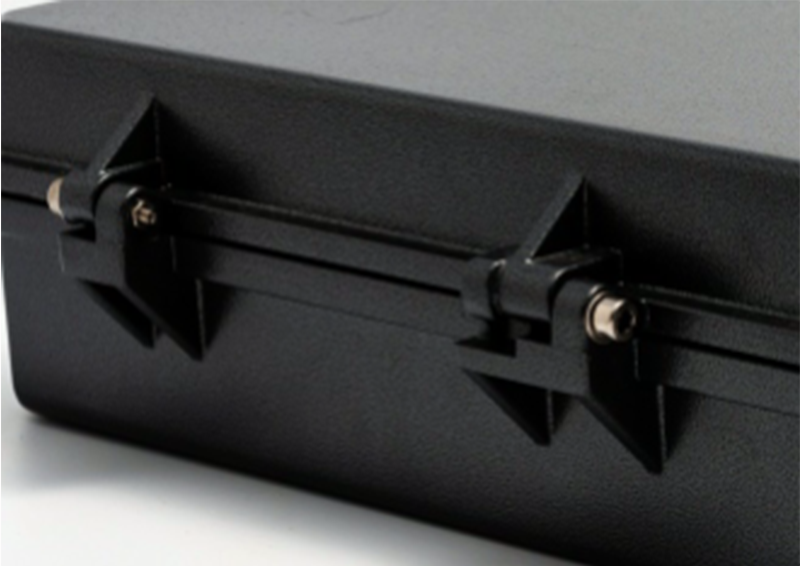

● Use the steel shell and spray coating techniques, resistance to corrosion, anti-UV .

● The voltage of the power circuit and signal control line is same, so the connection of the wires are simple and reliable,

    it will not cause damage to the lightings and controller when connect the error line shortly.

● Control circuit use the MCU control, can simultaneously control 2000W load power / within 100 units aviation obstruction

    lights synchronized flashing or steady .

● Controller have 3 kinds operating modes: automatic, manual, close.
    1 ) Automatic mode: automatically shutdown during the day, turn off the aviation light control output; automatically turn on

     at night an open aviation light control output.

    2 ) Work in manual mode: work status is forced open

    3 ) Work close mode: work status is forced closed, three operating modes can be  switched by the user .

● The controller can also customize the fault alarm function, when one of the light it controlled failed, the indicator on the

   controller can be shown, also could use the dry contacts to alarm the external enviroment

● The function of this aviation obstruction light controller is very powerful, performance is reliable and safe. Use and

    maintenance are simple and convenient; and with anti-surge device (anti-lightning In15KA /5 times, Imax 40KA),

    can be applied to a poor working environment.

CM-DKW Obstruction Light Outdoor Controller


StandardFAA / ICAO Standard
Operating voltageAC220V/DC48V
Power consumption≤10W
Load capacity≤2000W
Flashing frequency20~60 times
Number of control auxiliary light100 units
Ingress protectionIP65
Controlled environment brightness50~500Lux
Operating temperature-55℃~+55℃
Wind load240km/h
Net weight2.5kg

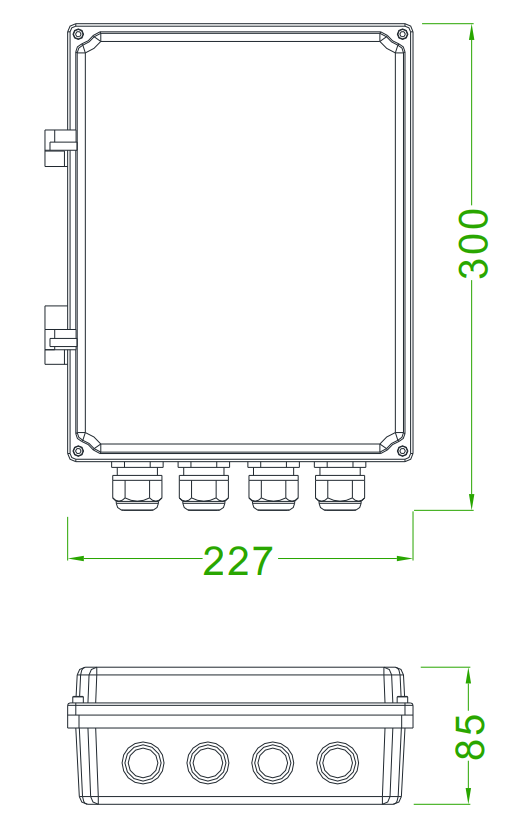

Overall size(mm)300mm×227mm×85mm
Installation size(mm)250mm×130mm-4×M4
