|Light source||White LED|
|Beam angle||360° horizontal beam angle|
|≥3° vertical beam spread|
|Method of synchronization||Same power supply voltage signal mode|
|Lightning protection level||10KA|
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together
● Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well;
● House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion;
● Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.
● Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environment protection.
● Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by controller.
● Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.
● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
● The circuit of the light has surge protection, so that the light is suitable to harsh environment
● Integral structure, protection lever of IP65
● GPS synchronizing function is available
CK-15 Medium Intensity Obstruction Light Type B Installation:

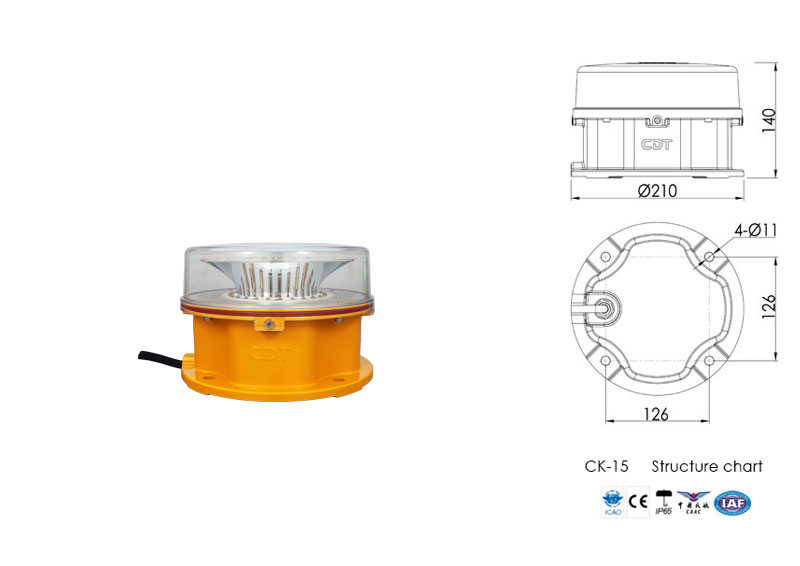

（1）The obstruction light is horizontal installation type, combine with vertical type mounting bracket, please refer to below picture.
（2 While installing, please do not put photosensitive probe toward light source or covered by other things.
（1）Connector distinguish: The CK-15 obstruction light has a cable with 4 cores, in which the brown and black lines are power supply lines (AC220V), the brown one is Live Line (L), the black one is Null Line (N), the blue one is Signal Line (X), and the yellow green one is Earth Line (E).
a. When connecting one unit light, only the brown live line(L), the black null line(N) and the yellow green earth line(E) need to be connected. The blue synchronized signal no need to be connected.

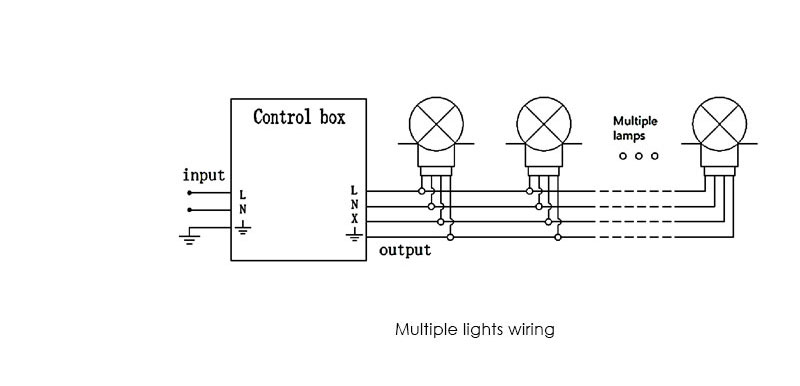

b. When connecting more than one unit light, all lines need to be connected so that the lights can be flashing synchronized.
● All the connections must be correct, otherwise it will damage the lights, please check the mark and instruction carefully.
● The power supply is AC220 50HZ/60HZ, can’t use other powers, otherwise it will damage the lights.
● The obstruction light need to be installed below lightning conductor or lightning protection zone, in case light be struck by lightning.
● It’s normal if temperature rise while operating.
● Please do not open any part of lights while operating.
● The light is fully sealed, please do not install or dismantle unless you are professional. Once operated inappropriately, our company will not guarantee the warranty.
