Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports,
wind power plants, bridge and city high-rise buildings where require aviation warning.
Usually used below 45m.

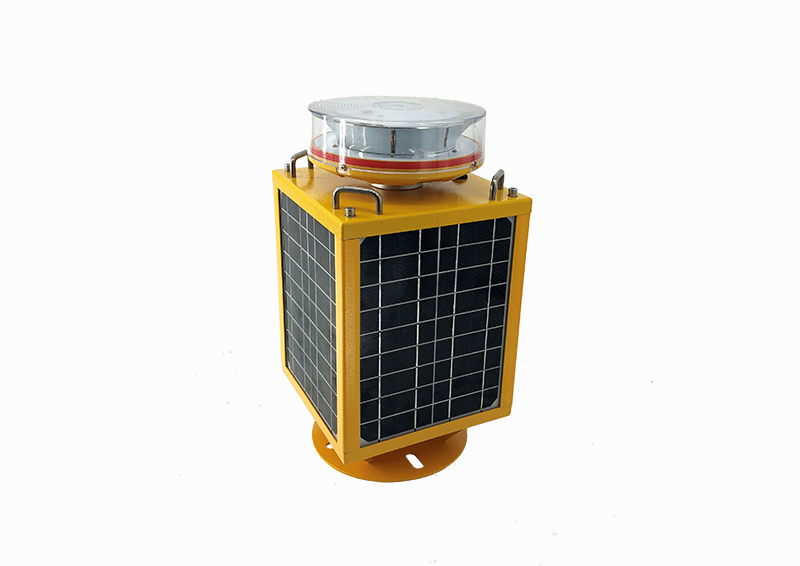

● Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact
resistance and fit the bad environment very well.
● The body of the light adopts SUS316 stainless steel .
● Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
● Based on the single chip computer micro power control, could control the charge and discharge precisely.
● Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
● Using Fresnel lens optical design, range further
● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
● Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA
so that the light is suitable to a harsh environment.
● Integral structure, protection level of IP65.
|Standard||FAA/ICAO Standard |
|Operating voltage||DC 6V|
|Flashing frequency||Steady burning|
|beam angle||360° horizontal beam angle|
|≥10° vertical beam spread|
|Method of synchronization||NA|
|Overall size(mm)||195mm * 195mm * 376mm|
|Lightning protection level||10KA|
|Light controlled sensitivity||50Lux|
|Reserve||6-8 days under cloudy/rainy |
