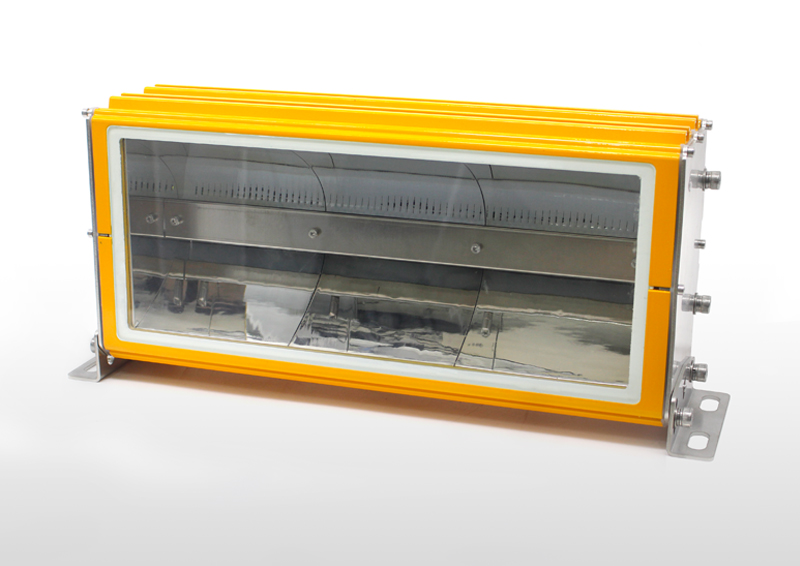

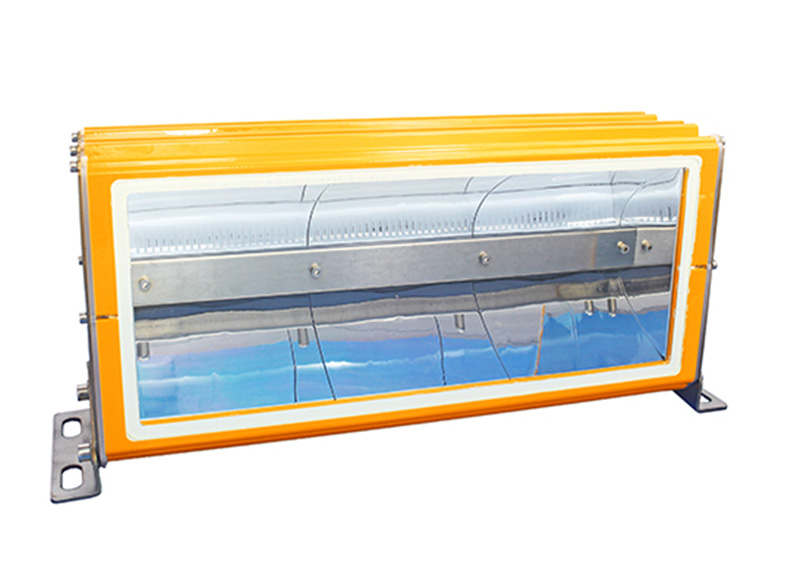

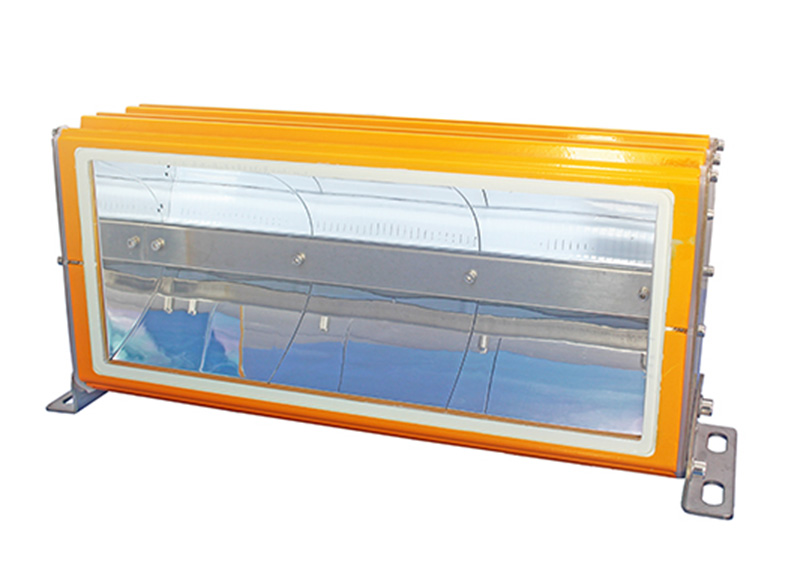

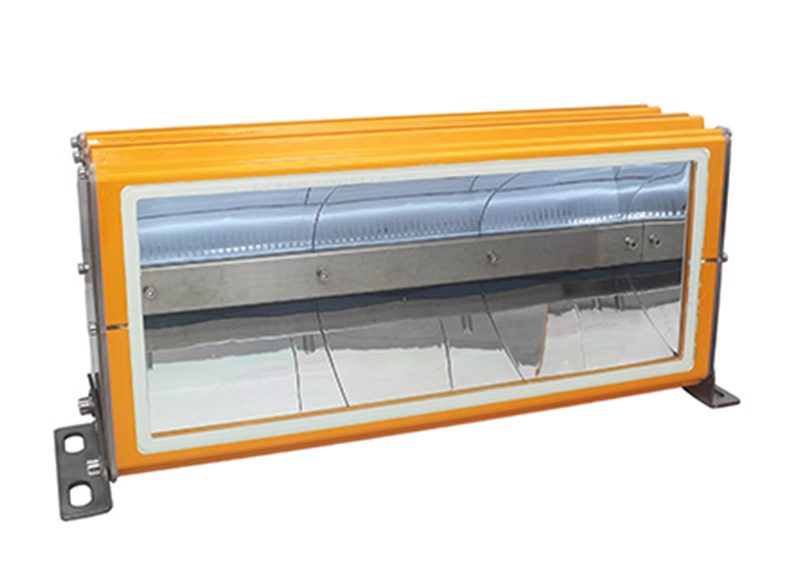

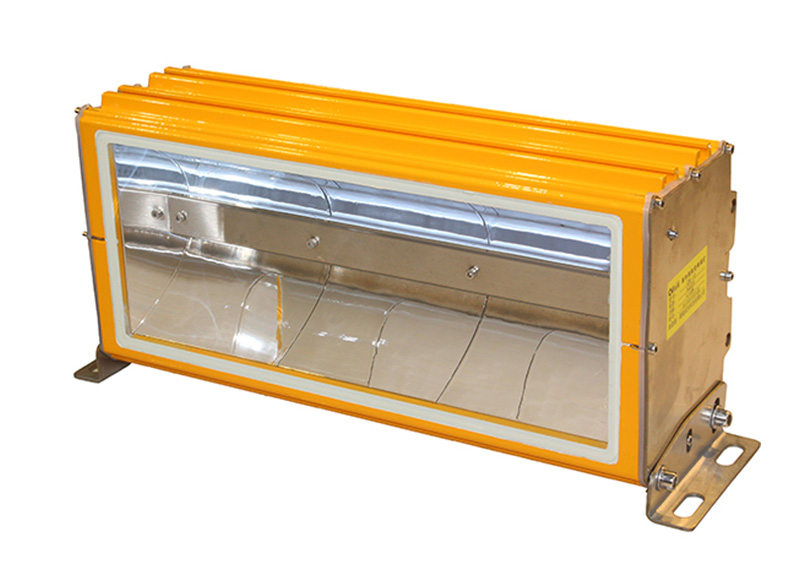

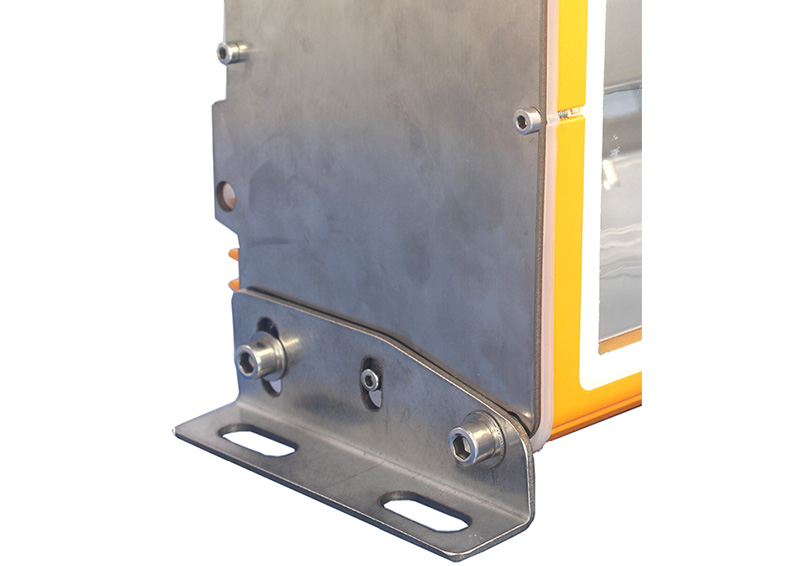

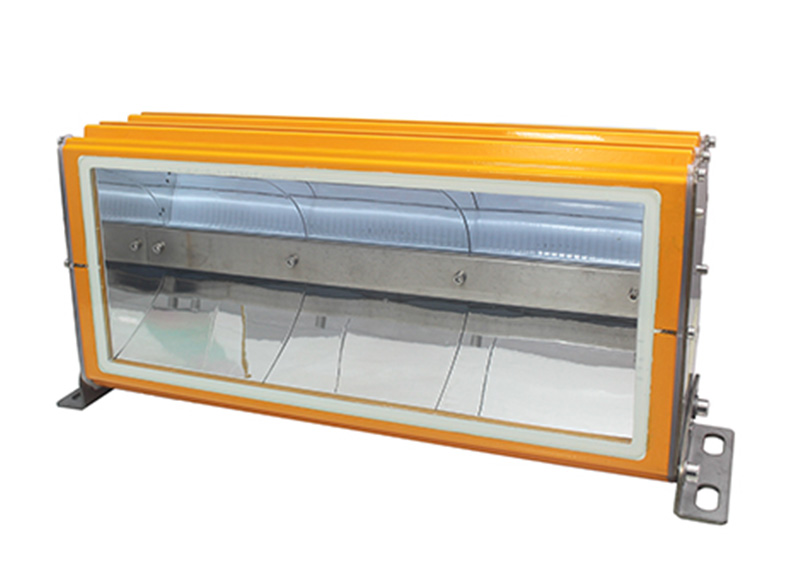

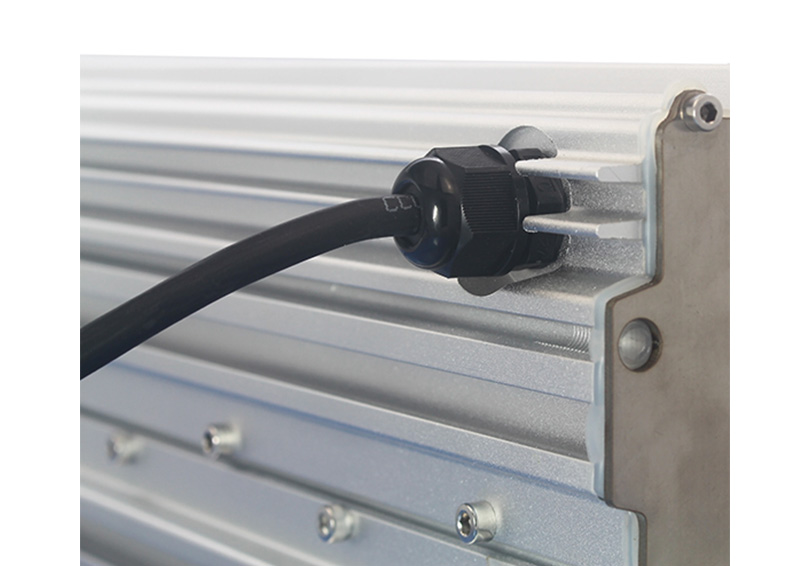

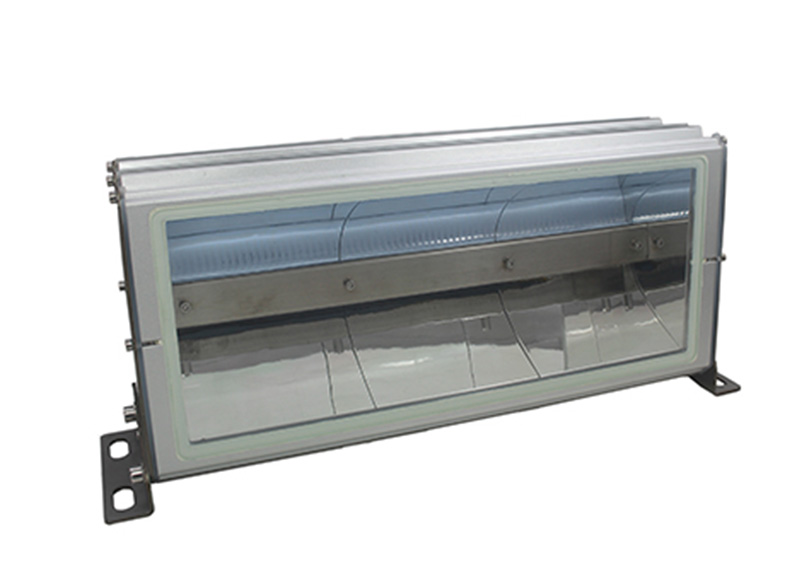

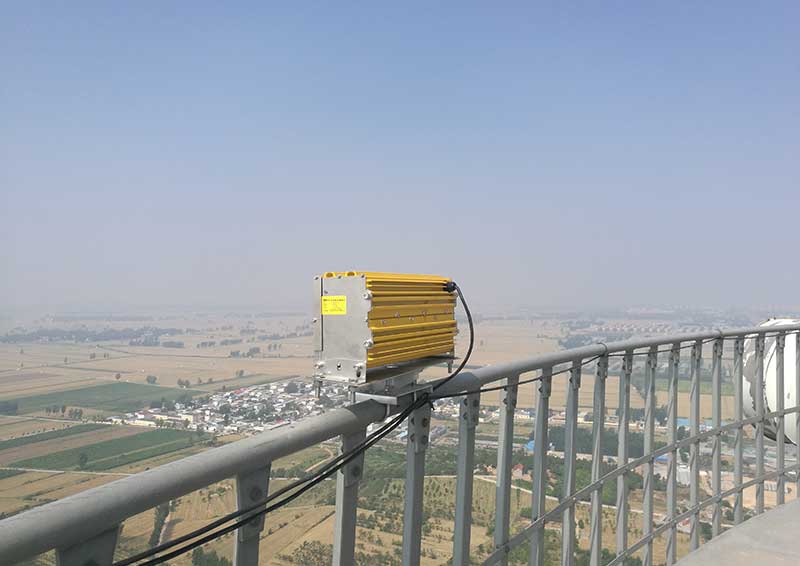

High Intensity Aviation Obstruction Light type A

Model: CM-18

Product Description

Specification:



ItemParameter
Operating voltageAC220V
Power consumption≤100W
Flashing frequency40~60times/min.
Light sourceWhite LED
Light intensityBackground LuminanceLight Intensity
≤50Lux2000cd(±25%)
50~500Lux20000cd(±25%)
>500Lux200000cd(±25%)
Lifespan>100,000 hours
Emitting colorWhite
Beam angle90° horizontal beam angle
3-7° vertical beam spread
Method of synchronizationSame power supply voltage signal mode

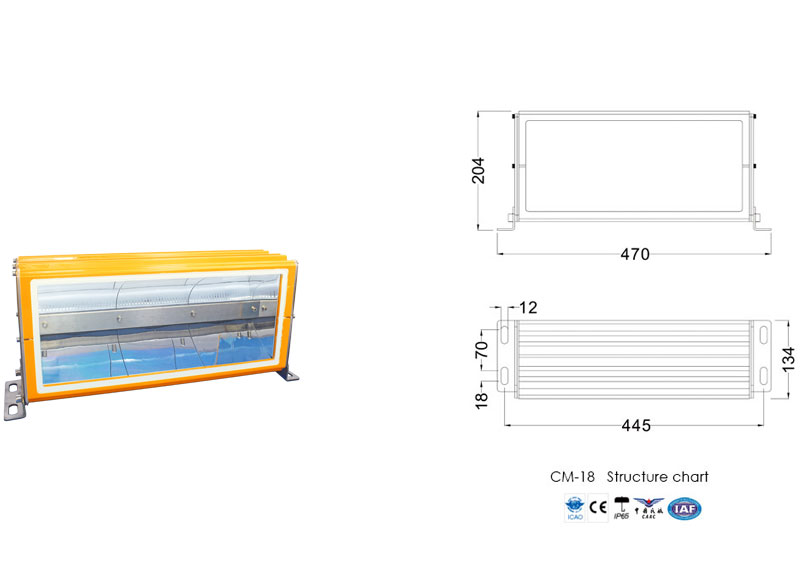

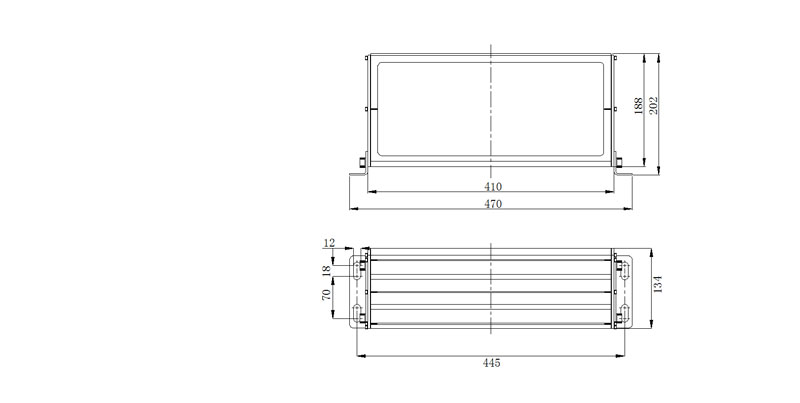

Overall size(mm)470mm×204mm×134mm
Installation size(mm)445mm×70mm×4-M10
Ingress protectionIP65
Lightning protection level10KA
Operating temperature-40℃~55℃
Net weight8kg
Wind load80m/sec.

High Intensity Aviation Obstruction Light type A

Application:

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.

Usually used above 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together


Features:
The house of the light adopts high quality aluminium alloy, the light emitting surface use tempered glass, the structure is high strength, resistance to corrosion

● Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.

● Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environment protection.

● Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by controller.

● Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.

● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

● The circuit of the light has surge protection, so that the light is suitable to harsh environment

● Integral structure, protection lever of IP65

● GPS synchronizing function is available


CM-18 High Intensity Obstruction Light Installation and Usage:

 1. The identification of the line, lamps with one four-core cable: the brown and black line is the power line, the brown wire is the live wire(L), the black wire is the null line (N); the blue is the signal wire(X),the yellow-green wire is the ground line (High Intensity Aviation Obstruction Light type A)

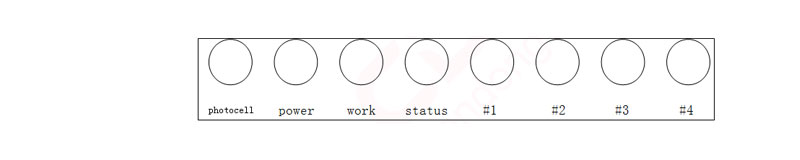

 2. Monitor controller panel : photocell , power , work, environment status , and 4 obstacle light failure indicator

 3. Photocell: Testing environment brightness

 4. Power indicator: Properly plugged into a power supply, light is lit

 5. Work indicator: Monitoring system of work instructions, bright 1.5 seconds, 1.5 seconds

 6. Status indicator: monitor system is operate model,flashing 1 times within 3seconds , it working on night with intensity 2000cd , flashing 2 times in a row within 3seconds ,it working on dawn or dusk with intensity 20000cd, flashing 3times in a row within 3seconds ,it working on day with intensity 270000cd

 7. Faulty indicator: #1 to #4 lamps is four OBL


High Intensity Aviation Obstruction Light type A

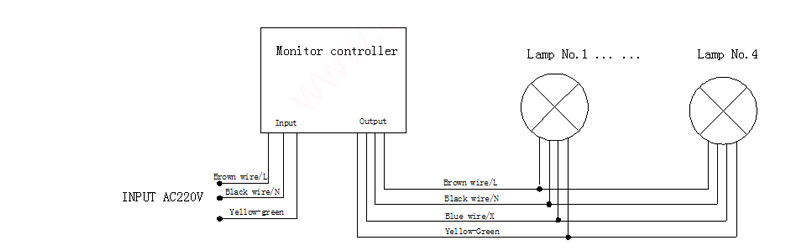

8. Connection: all lamps join up controller in parallel as follow


High Intensity Aviation Obstruction Light type A



High Intensity Aviation Obstruction Light type A

CM-18 High Intensity Obstruction Light Installation Way

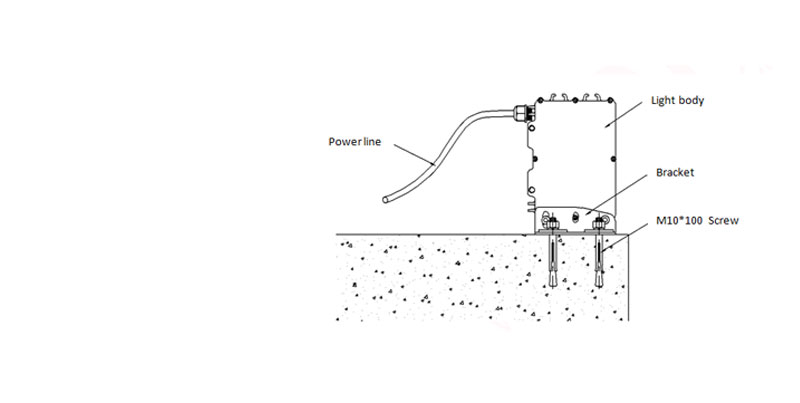

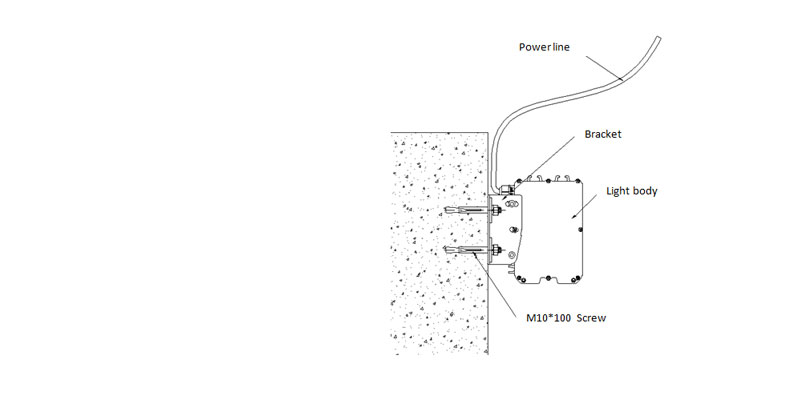

(1)Vertical way :

High Intensity Aviation Obstruction Light type A

(2)Side elevation :

High Intensity Aviation Obstruction Light type A


(3)Attention:

● All the lines must be connected correctly, otherwise may damage the light. Please look at the mark and introduction carefully.

● The power supply of this type of light is AC220V、50HZ/60HZ. Do not use other power supply, such as 380V, otherwise the light will be quickly damaged.

● In order to avoid being struck by lightning, the lamp is prohibited to install on the top or the edge of the iron tower (When necessary, it could add lightning arrester on the outside of the lamps).

● Don't aim the photocell switch to other light source;At the same time ensure photocell switch not be other objects.

● There will be a temperature rise when working, it is normal situation.

● When the light working, in order to avoid the dangerous, pls don’t open any part of the light body.

● This product is a sealing structure, pls don’t dismounting if you are non-professional technicians, Otherwise, we are not responsible for warranty repair.
