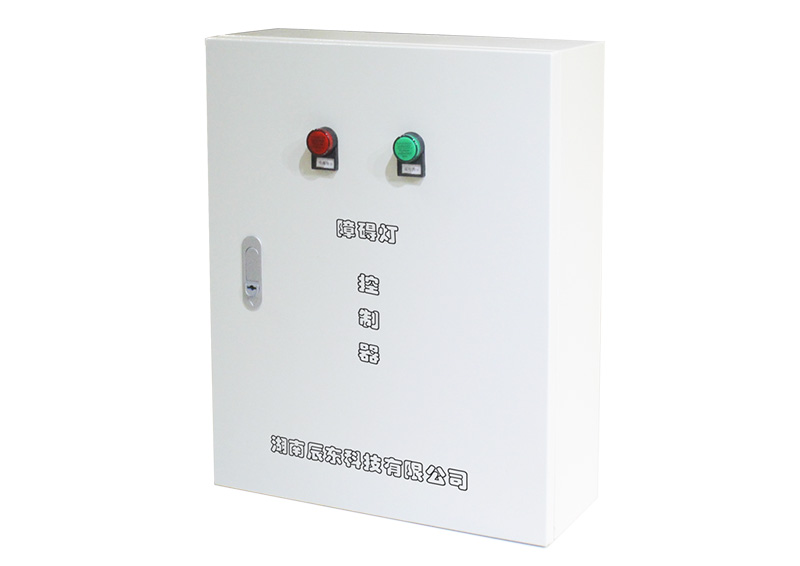

Obstruction light Indoor Controller

Model: CM-DKN

Product Description


Operating voltageAC220V/DC48V
Power consumption≤20W
Load capacity≤4000W
Flashing frequency20~60 times
Number of control auxiliary light200 units
Ingress protectionIP43
Controlled environment brightness50~500Lux
Optical probeCM-012GK
Operating temperature-55℃~55℃
Wind load80m/sec.
Net weight6kg
Overall size(mm)400mm×300mm×200mm
Installation size(mm)350mm×240mm×M6

For the CM-DKM aviation obstruction indoor’s controller is fit for our company’s all series aviation obstruction’s sychronization flashing work and monitor the light’s working state. This product is a indoor’s type, the waterproof grade is IP43, could use for the indoor’s enviroment directly.


● Use the steel shell and spray coating techniques, resistance to corrosion, anti-UV

● The voltage of the power circuit and signal control line is same, so the connection of the wires are simple and reliability, it will not cause damage to the lightings and controller when connect the error line shortly.

● Control circuit use the MCU control, can simultaneously control 4000W load power / within 200 units aviation obstacle lights synchronized flashing or steady.

● Controller have 3 kinds operating modes: automatic, manual, close

Automatic mode: automatically shutdown during the day, turn off the aviation light control output; automatically turn on at night an open aviation light control output.

Work in manual mode: work status is forced open

Work close mode: work status is forced closed, three operating modes can be switched by the user .

● The controller can also customize the fault alarm function, when one of the light it controlled failed, the indicator on the controller can be shown, also could ues the dry contacts to alarm the external enviroment.

● The function of this aviation obstruction light controller is very powerful, performance is reliable and safe. Use and maintenance is simple and convenient; and with anti-surge device (anti-lightning In15KA /5 times, Imax 40KA), can be applied to a poor working environment.
